High-Pressure & Foam Cleaning Machines
Two mobile cleaning machines for food-processing production areas: a dedicated bucket-style pneumatic foam cleaner and an intelligent high-pressure cleaning machine. Select a model below to view its images and technical data.

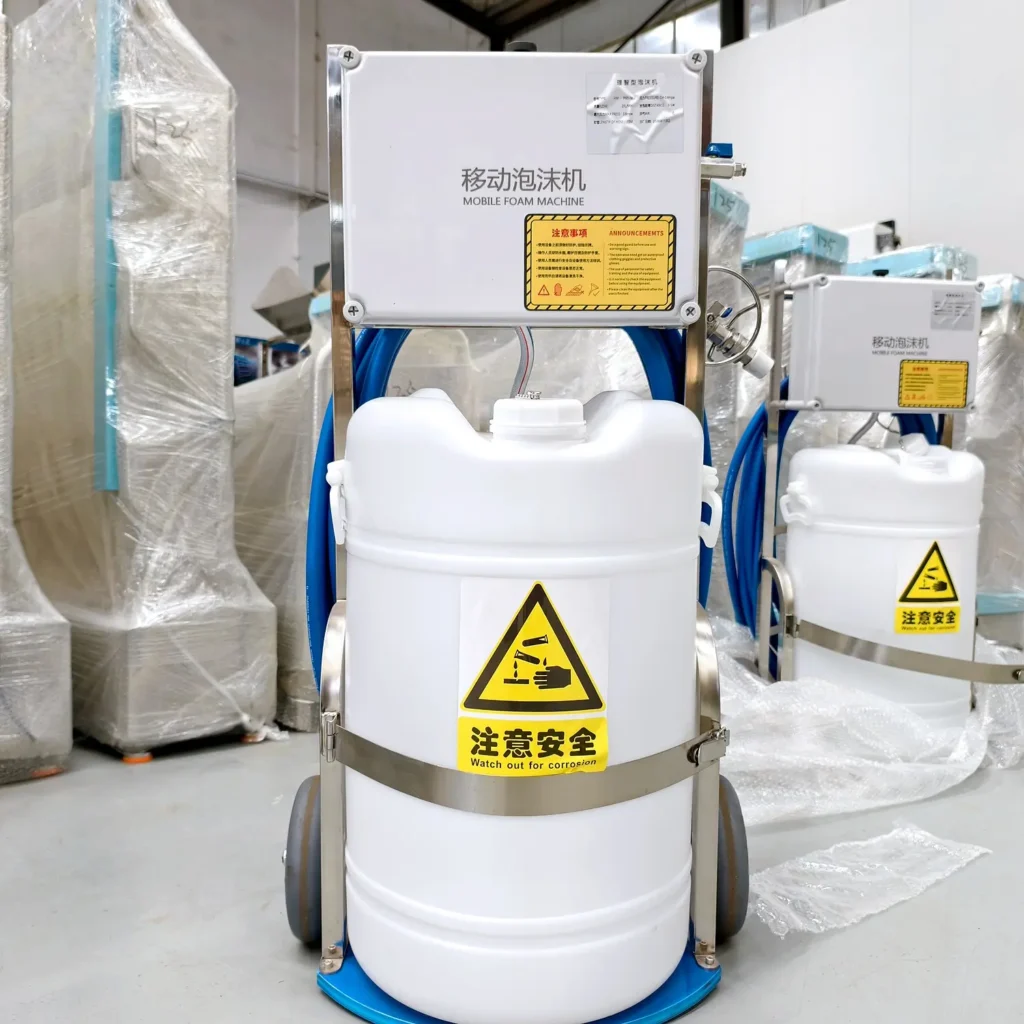

Mobile Diaphragm-Pump Foam Cleaning Machine
Technical Specifications
Material & Construction
- Material
- SUS304 Stainless Steel
Dimensions & Power
- Dimensions
- 600 × 450 × 1080 mm
- Voltage
- Pneumatic / air supply
- Power
- N/A / non-electric
Options & Integration
- Manufacturer Model
- ZN-PMQXJ
- Weight
- 20.5 kg
- Air Flow
- 190 L/min
- Air Hole Diameter
- 8 mm
- Working Pressure
- 0.8 MPa
- Hose Length
- 15 m food-grade hose
Product Details
Designed for mobile foam application in hygienic food-processing environments. The pneumatic unit uses a bucket-style tank and supports practical cleaning coverage with a 15 m food-grade hose.
Browse Products
2 products in this series. Select a product to view its images, video and specifications.
Two Cleaning Options for Production Areas
Mobile Foam Application
VJS-PMJ-001 provides dedicated pneumatic foam dispensing through a mobile bucket-style cleaning unit.
50 Bar High-Pressure Rinsing
VJS-GYQXJ-001 supports high-pressure rinsing together with foam application and mist disinfection.
SUS304 Construction
Both products use hygienic stainless-steel structures suited to demanding food-processing environments.
Practical Hose Coverage
Choose a 15 m food-grade hose for the foam unit or a 25 m hose for the high-pressure machine.
Production-Area Cleaning Sequence
A practical four-step workflow for selecting and operating the appropriate mobile cleaning machine. Final procedures should follow the facility sanitation plan.
01
Select the Model
Choose VJS-PMJ-001 for dedicated foam application or VJS-GYQXJ-001 for high-pressure rinsing and multi-function cleaning.
02
Connect Utilities
Connect compressed air for the foam unit, or connect 380 V / 50 Hz power and the DN20 water inlet for the high-pressure machine.
03
Apply Foam or Rinse
Clean approved equipment, walls, floors, containers and production-area surfaces according to the selected process.
04
Finish & Store
Complete the site rinsing procedure where required, rewind the hose and prepare the mobile unit for its next use.
Designed for Food-Processing Cleaning Areas
Select the machine according to the cleaning stage, available utilities, required pressure and hose reach. VJS-PMJ-001 is the dedicated mobile foam unit; VJS-GYQXJ-001 is the intelligent high-pressure and multi-function cleaning unit.
Configured Around Your Cleaning Workflow
Key project variables include the cleaning objects, required foam or rinsing function, compressed-air availability, voltage, water inlet, working pressure, hose coverage, drainage and machine storage position.
Typical Applications
Common production environments that require controlled foam application, high-pressure rinsing and routine wash-down coverage.
Food Processing
For cleaning approved processing equipment, support surfaces, floors and wet work areas.
Meat & Poultry
Supports routine foam application and wash-down work in wet-processing environments.
Beverage & Bottling
For production-area cleaning around filling, processing and packaging equipment.
Central Kitchens
Suitable for mobile cleaning of equipment, containers, floors and food-production work zones.
Installation & After-Sales Support
Practical support for utility confirmation, equipment setup, routine maintenance and replacement-part requirements.
Installation Support
Site planning, positioning and setup guidance can be provided according to the equipment configuration.
- Installation Guidance
- Layout Recommendations
- Operating Instructions
Maintenance Support
Cleaning and routine maintenance guidance helps support reliable operation and longer service life.
- Routine Maintenance
- Cleaning Guidance
- Technical Assistance
After-Sales Support
Technical assistance and replacement-parts support are available for troubleshooting and service requirements.
- Troubleshooting Support
- Replacement Parts
- Technical Service
Need help choosing the right cleaning machine?
Frequently Asked Questions
Technical and project questions commonly raised before selecting a foam or high-pressure cleaning machine.
Which two products are included on this page?
This page contains VJS-PMJ-001 Mobile Diaphragm-Pump Foam Cleaning Machine and VJS-GYQXJ-001 Intelligent High-Pressure Cleaning Machine. Both products are in the same category.
When should I choose VJS-PMJ-001?
Choose VJS-PMJ-001 for dedicated mobile foam dispensing. The confirmed configuration uses 190 L/min air flow, 0.8 MPa working pressure and a 15 m food-grade hose.
When should I choose VJS-GYQXJ-001?
Choose VJS-GYQXJ-001 when the process requires 50 bar high-pressure rinsing, foam application or mist disinfection with a 25 m hose.
What utilities are required for each model?
VJS-PMJ-001 requires compressed air and is non-electric. VJS-GYQXJ-001 requires 380 V / 50 Hz power and a DN20 water inlet with 3–5 bar inlet pressure.
What hose length is supplied?
VJS-PMJ-001 includes a 15 m food-grade hose. VJS-GYQXJ-001 includes a 25 m hose.
How do I request a quotation?
Send the model, cleaning objects, facility type, available utilities, destination and required quantity. Our team can prepare a project quotation.
Need Help Selecting a Foam or High-Pressure Cleaning Machine?
Send us your cleaning objects, site utilities, required hose reach and destination. We’ll recommend VJS-PMJ-001 or VJS-GYQXJ-001 according to the project.
